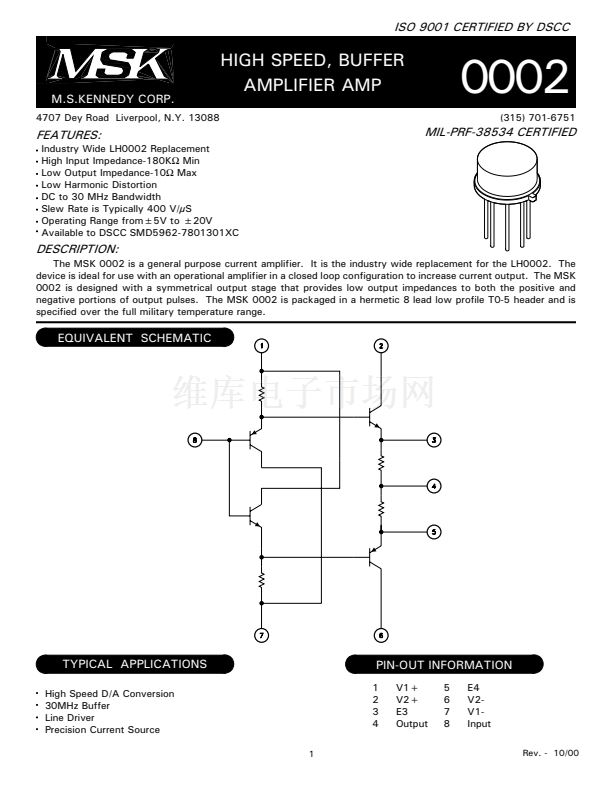

ISO 9001 CERTIFIED BY DSCC
M.S.KENNEDY CORP.
4707 Dey Road Liverpool, N.Y. 13088
HIGH SPEED, BUFFER
AMPLIFIER AMP
0002
MIL-PRF-38534 CERTIFIED
(315) 701-6751
FEATURES:
Industry Wide LH0002 Replacement
High Input Impedance-180K鈩?Min
Low Output Impedance-10鈩?Max
Low Harmonic Distortion
DC to 30 MHz Bandwidth
Slew Rate is Typically 400 V/碌S
Operating Range from卤5V to 卤20V
Available to DSCC SMD5962-7801301XC
DESCRIPTION:
The MSK 0002 is a general purpose current amplifier. It is the industry wide replacement for the LH0002. The
device is ideal for use with an operational amplifier in a closed loop configuration to increase current output. The MSK
0002 is designed with a symmetrical output stage that provides low output impedances to both the positive and
negative portions of output pulses. The MSK 0002 is packaged in a hermetic 8 lead low profile T0-5 header and is
specified over the full military temperature range.
EQUIVALENT SCHEMATIC
TYPICAL APPLICATIONS
High Speed D/A Conversion
30MHz Buffer
Line Driver
Precision Current Source
1
PIN-OUT INFORMATION
1
2
3
4
V1+
V2+
E3
Output
5
6
7
8
E4
V2-
V1-
Input
Rev. - 10/00
1
2
3
4
5
